K32-M-EU

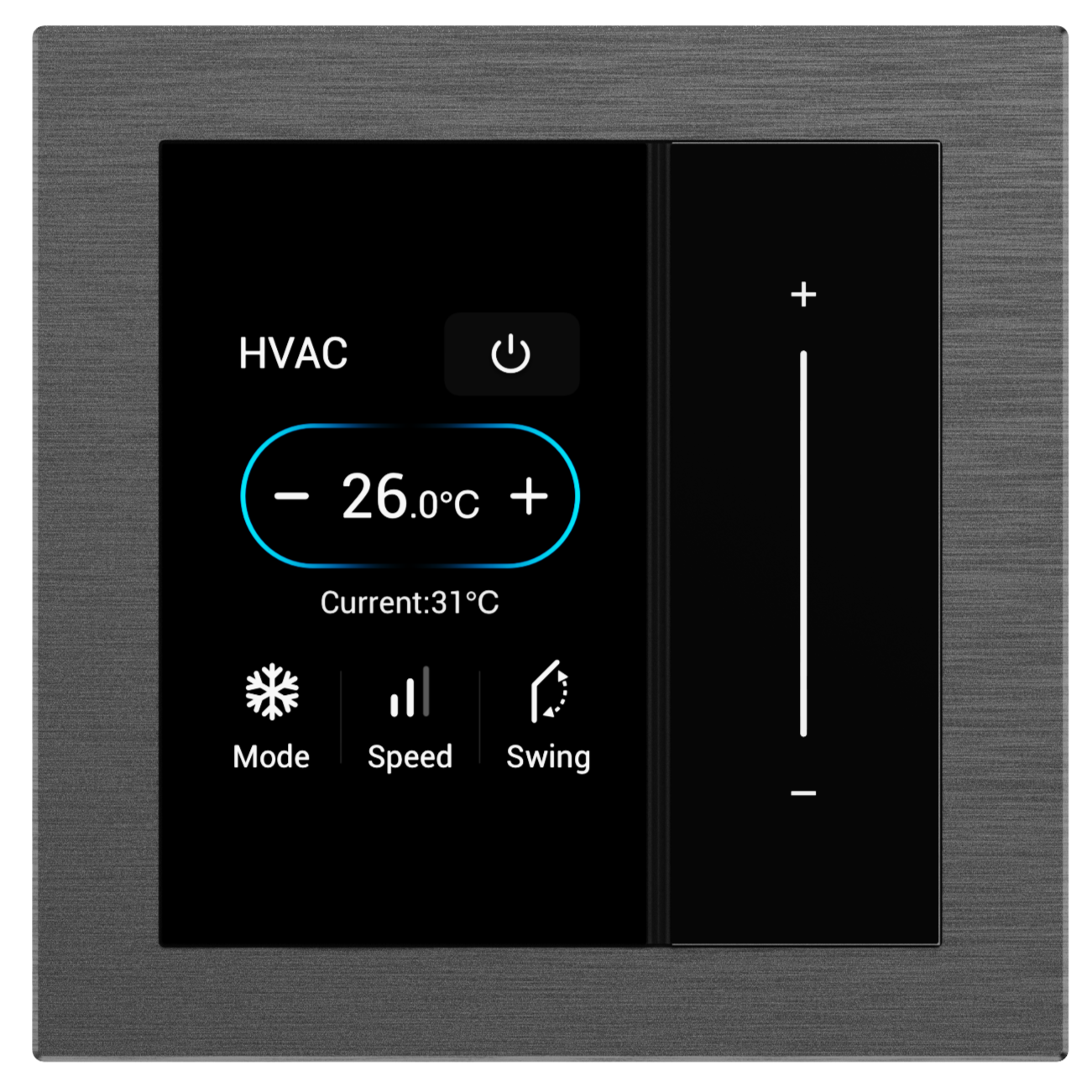

The KNX multi-functional panel(K32-M-EU) can display and control KNX HVAC devices. Through device cards on the touchscreen, users can execute predefined functions, such as sending air-conditioning or fresh-air control telegrams to the KNX bus system to manage HVAC devices on the bus.
Compared to traditional push-button panels, this touch panel features a full-color LCD display and a user-friendly interface. It provides clearer status visualization and a more convenient, intuitive control experience.
This manual provides detailed technical information about the KNX multi-functional panel, including product specifications, installation instructions, programming procedures, and practical application examples.
The device requires both KNX bus power and an additional 24–30 V DC auxiliary power supply.
Physical address assignment and parameter configuration are performed using ETS engineering software (ETS 5.7 or later) with the corresponding .knxprod file.
Key features:
2.0-inch color IPS display, 320 × 240 resolution
Capacitive touchscreen
Integrated thermostat functionality
Air conditioning control
Fresh-air system control
Underfloor heating control
Scene group control
Logic functions, including: AND / OR / XOR operations: Gate forwarding, Threshold comparison, Data type conversion, Logic gate processing
Floor and room configuration
Safety functions
Built-in temperature sensor
Proximity detection
Adjustable screen brightness
Temperature unit selection (°C / °F)
