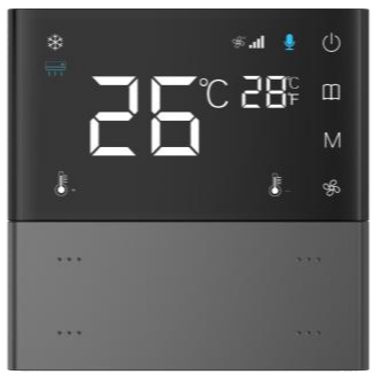

The temperature control panel is mainly used in smart home systems. t connects to the KNX bus via the EIB terminals and integrates with other devices on the bus to form an intelligent control system. The panel is designed for intuitive operation, allowing users to configure functions and customize panel features according to specific application scenarios.

The panel supports a wide range of features, including switches, dimming, blind control, scene activation and storage, RGB dimming, multi-action buttons, delayed value transmission, and more. Each button is equipped with an LED indicator to show its status.

The panel connects to the bus via EIB terminals and requires an additional auxiliary power supply. Physical addressing and parameter configuration are performed using ETS engineering software (version ETS5.7 or higher) with a .knxprod file.

Key features:

• Multi-mode control for AC, ventilation, and underfloor heating

• Customizable temperature control display content

• Real-time environmental data display

• Support for switch, dimming, color tuning, and blind control via actuators

• Scene call and storage

• Delayed transmission of values

• Multi-functional button operation

To ensure proper system operation, verify wiring before use and pay attention to the electrical characteristics of connected loads. Function configuration must align with the capabilities of the selected product.
