Akuvox V6.7.2 SmartPlus Sub-distributor Guide
- Updated on 22 Mar 2024
- Print
- DarkLight
- PDF
This manual is intended for the sub-distributors who need to properly manage the installers, residents, devices, and remote maintenance on the SmartPlus platform.
For more information, please visit http://www.akuvox.com/ or consult our technical support.
System Overview
Akuvox SmartPlus is a cloud-based platform on which sub-distributors can conduct integrated management of installers, users, devices, remote maintenance, SmartPlus service subscriptions, etc.
Sub-distributors using this platform will be able to:
Add, delete, search, and check the installer account.
Manage the community, office, and personal devices by searching and checking the devices’ information.
Check and delete third-party devices.
Subscribe to Akuvox SmartPlus Service for the residents.
Check SmartPlus service transactions.
Leave your contact to the customers.
Log into SmartPlus
You can log in SmartPlus platform with the sub-distributor account obtained from your distributor.
Open the web browser to enter the address (URL) of the SmartPlus server located in your area, and press Enter.
Enter your username and password.
Click on Login to log in to the SmartPlus platform.
Note
Google Chrome Browser is recommended.
You can click on Log out in the upper right corner to log out of the SmartPlus platform.
SmartPlus Main Interface
Akuvox SmartPlus's main interface has eight modules, that allow you to manage tenants, office staff and personnel, devices, and so on. Moreover, you can make subscriptions for the end users of the Akuvox SmartPlus service and check for the service transaction.
Module Description
No. | Module Name | Description |
---|---|---|
1 | Project Device | Allows you to manage the devices in community scenarios and office scenarios. Moreover, it allows you to conduct remote maintenance on the devices. |
2 | Personal Device | Allows you to check and delete the single tenant devices. Moreover, it allows you to conduct remote maintenance on the devices. |
3 | Third-Party Device | Allows you to check and delete the third-party device added by installers. Currently, installers can only add third-party cameras. |
4 | User | Allows you to manage the installers and check end-user information. |
5 | Firmware | Allows you to check the device firmware available for updates. |
6 | Subscriptions | Allows you to pay for the SmartPlus service activation and renewal, and pay for the extra family member account. |
7 | Payments | Allows you to check for information related to transactions made and ongoing transactions. |
8 | Setting | Allows you to set up your customer service contacts. |
Device Management
You can manage the devices for single tenants, multi-tenants as well as devices deployed in the office scenario by adding device MAC, checking device information, and deleting the device(s).
Project Device Management
The Project Device module provides remote maintenance for the community and office devices.
Check/Delete Project Devices
Select Community for the community devices or Office for the office devices.
Search and check the community devices by MAC, SIP, Community Manager, and Community.
Search and check the office devices by MAC, Office, SIP, and Office Manager.
Click to check the device information and click to delete the device.
Community Device:
Office Device:
Remote Maintenance for Project Devices
You can provide end users with remote maintenance in terms of device data transmission type configuration, device reboot, device web interface remote control, device auto-provisioning(AutoP), etc.
Select Community or Office.
Click and then Settings of the device for remote maintenance.
Community Devices:
Office Devices:
Reboot, reset, or remotely log into the device web interface via Remote Control.
Enter the commands for the AutoP, then click on Submit.
Click on One-Time AutoP and enter the command if you want the Autop command(s) to be implemented one time.
Note
Duplicate commands will not be retained.
One-time AutoP allows you to carry out the Autop command(s) only one time with no repetition.
Batch AutoP for Community Devices
AutoP allows you to configure the devices remotely. You can synchronize the selected configuration command to the targeted devices in your community via auto-provision. You have two AutoP options: Regular AutoP or One Time AutoP.
To conduct AutoP for the devices:
Click AutoP for the Community or Office devices.
Select the AutoP type.
Regular AutoP: The configuration will always be valid.
One-Time AutoP: The configuration will be valid for one time.
Enter the AutoP command.
Search and select the devices to perform the AutoP, then click Submit.
You can synchronize the commands to 500 devices maximum at a time.
Note
Duplicate commands will not be retained.
One-time AutoP commands will not be valid once you reset the device(s) either for factory reset or configuration reset.
Personal Device Management
The Personal Device module provides remote maintenance for single-tenant devices.
Check/Delete Personal Device
Search and check the device by MAC, Device Name, Single-tenant Manager, and SIP.
Click to check the device information and click to delete the device.
Remote Maintenance for Personal Devices
You can provide residents with remote maintenance in terms of device data transmission type configuration, device reboot, device web interface remote control, device provisioning, etc.
Click and then Settings of the desired device.
Reboot, reset, or remotely log into the device web interface via Remote Control.
Enter the commands for the AutoP, then click on Submit.
Click on One-Time AutoP and enter the command if you want the Autop command(s) to be implemented one time.
Note
Duplicate commands will not be retained.
One-time AutoP commands will not be valid once you reset the device(s) either for factory reset or configuration reset.
Batch AutoP for Personal Devices
AutoP allows you to configure the devices remotely. You can synchronize the selected configuration commands to the targeted personal devices via AutoP. You have two AutoP options: Regular AutoP or One Time AutoP.
To conduct AutoP for the devices:
Click AutoP of the desired device.
Select the Autop type.
Regular AutoP: The configuration will always be valid.
One-Time AutoP: The configuration will be valid for one time.
Enter the AutoP command.
Search and select the devices to perform the AutoP, then click Submit.
You can synchronize the commands to 500 devices maximum at a time.
Note
Duplicate commands will not be retained.
One-time AutoP commands will not be valid once you reset the device(s) either for factory reset or configuration reset.
Third-Party Device Management
The Third-Party Device module allows you to check and delete third-party devices.
Click Project or Personal and search by
Device Name, Project, or Project Manager for the project device;
Device Name, Owner, or Single-tenant Manager for the personal device.
Click to delete the device.
User Management
The User module allows you to manage the installer account and check the end user information.
Installer Account Management
Add Installer Account
Click Installer and then New.
Set up the installer account.
Setting Description:
No. | Field | Description |
1 | Account | Fill in the installer’s account name. |
2 | Business | Select the Intercom type or Smart Home service type.
|
3 | Company | Fill in the installer’s company name. |
4 | Fill in the installer’s email address. | |
5 | Phone | Fill in the installer’s phone number. |
6 | Time Zone | Select the specific time zone, which will become the default time zone for the devices of the project created under the installer account. |
7 | Language | Select the language of the Email that will be sent to the installer when the installer account is created. |
8 | Charge Mode | Select the payer for the SmartPlus service (both account activation and renewal). If Pay by Distributor is enabled, this option won’t appear. |
9 | Connect Type | Select the device data transmission type. Leave it default if there is no specific requirement or use a specific type according to the suggestions from the Akuvox technical team. |
10 | RTP Confusion | Switch on the RTP confusion to prevent RTP transmission from being blocked in certain countries or regions where RTP transmission is banned. Note: RTP Confusion is switched off by default. |
11 | Get Access Without Password | This feature enables you to access the installer's web portal without a password when your installer needs your support or assistance. By default, this feature is turned off. Your installer must enable this function before you can log into their account. Once the function is enabled, you will see a lock icon in the Action column, which you can click to be redirected to their accounts. |

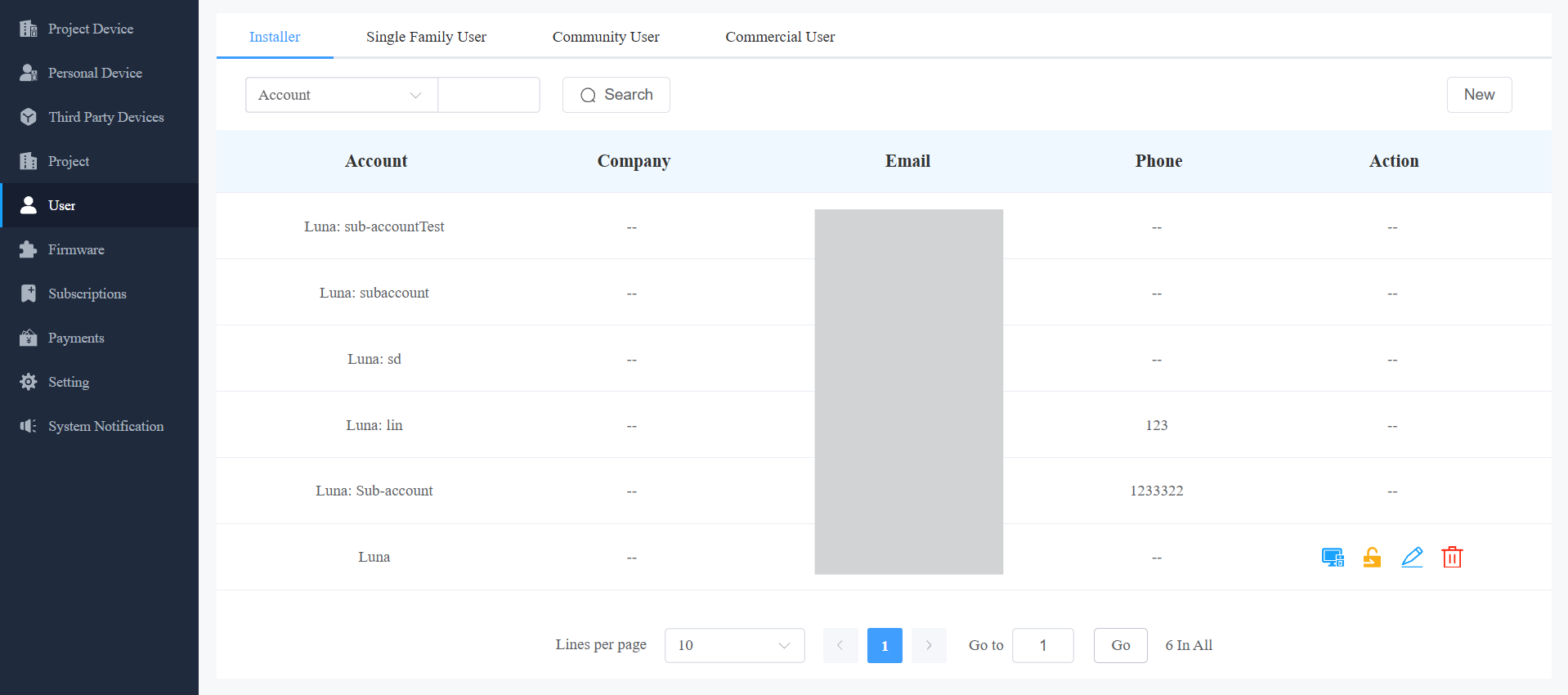

Check/Edit/Delete Installer Account
After the installer accounts are created, you can check, edit, and delete the installer accounts.
Click Installer and search for the desired installer by Account or Email.
Click to add MAC addresses for the installer’s single tenants. You can import the device MAC addresses using the template or add them one by one.
Click to edit the installer information and reset the account password. Click to delete the installer.
Access Installer Account
You can access the installer account without a password to help installers with management and deployment, but you will need to be authorized by the installers first before you can log in to their account from your web portal. Installers can grant or revoke the permission whenever they want.
Click Installer and search for the desired installer by Account or Email.
Click to access the installer account.
End User Account Management
End-user account management involves searching and checking the end users’ accounts.
Search/Check End User Account
Click Villa User, Community User, or Office User and search for the desired user.
Search the residential user by Account Type and account information.
Search the office user by Account Type and account information.
Parameter Description(Villa and Community User)
No. | Column Name | Description |
1 | Account Type | Search the user by All, Family Master, or Family Member. |
2 | Search Type | Search the user by SIP, Name, Email, Mobile Number, Installer, and Family Master. |
3 | Name | Displays the user’s name. |
4 | SIP | Displays the user’s SIP number. |
5 | Displays the user’s Email address. | |
6 | Mobile Number | Displays the user’s mobile phone number. |
7 | Installer | Displays the name of the installer(s) managing the end user. |
8 | Community | Displays the user’s community name. |
9 | Family Master | Displays the name of the family master(s). |
10 | Address | Displays the address of the end user(s). |
11 | Phone | Displays the landline number of the end user(s). |
12 | Active | Displays the account status. |
13 | Premium Plan | Displays whether the premium plan for villa users is on or off. |
14 | Created Time | Displays when the account is created. |
15 | Expiration Time(App) | Displays when the community user account will expire. |
16 | Expiration Time(Premium) | Displays when the premium plan of the villa user will expire. |
17 | Action | For checking the account details. |
Parameter Description(Office User)
No. | Column Name | Description |
1 | Search Type | Search the user by SIP number, Name, Email, Mobile Number, Installer, or Office name. |
2 | Name | Displays the user’s name. |
3 | SIP | Displays the user’s SIP number. |
4 | Displays the user’s Email address. | |
5 | Mobile Number | Displays the user’s mobile phone number. |
6 | Installer | Displays the name of the installer(s). |
7 | Office | Displays the user’s office name. |
8 | Phone | Displays the landline number of the end user(s). |
9 | Active | Displays the status of the user account. |
10 | Created Time | Displays when the account is created. |
11 | Expiration Time(App) | Displays when the office user account will expire. |
12 | Action | For checking the account details. |
Check Firmware List
The Firmware module allows you to check the latest firmware that is available for your installers.
Firmware List Description
No. | Heading | Description |
1 | Version | Displays the firmware version number. |
2 | Model | Displays the device model. |
3 | Change Log | Generally displays remarks on the version. |
4 | Created Time | Displays when the firmware was uploaded. |
5 | Action | Click to check the detailed firmware information. |
Subscription
You can pay for the service activation and renewal for the single tenant users, multi-tenant users, and office users under a specific installer. Moreover, you can pay for an extra family member account as well as paying for the property manager SmartPlus app service.
Note
Your distributor should enable the payment feature before you can pay for end user service.
Activation Service
Pay for Community Users and Property Managers
Select the installer.
Select the Community project type and click Next.
Click Active.
Check off the users you need to pay for. You can filter users by selecting the communities and the service type or clicking the icon next to the APT or APT Name to reorder the list.
Select the item(s) and click Next.
Pay for the order. You can pay it by Stripe, PayPal, or by Coupon.
To pay by Stripe or PayPal, select Don’t Use Coupon.
To pay the coupon, select All Fee.
Note
To pay by coupon, you will need to purchase the coupon from Akuvox sales first. You can check coupon information in the upper right corner.
Coupon Description:
No. | Field Name | Description |
1 | Normal | Displays the valid coupons. |
2 | Used | Displays coupons that are used out. |
3 | Expired | Displays the expired coupons that still have value. |
Billing Information Description:
No. | Field Name | Description |
1 | Company/Family | Fill in the distributor company. |
2 | ATTN | Fill in the name of the distributor. |
3 | Address | Fill in the address of the distributor. |
4 | TEL | Fill in the telephone number of the installer. |
5 | Fax | Fill in the Fax number of the installer. |
6 | Fill in the mail of the distributor. |
Note
You can pay for an extra family member account for the single tenant in the same way.
Pay for Single-tenant Users
Select the installer.
Select Villa project type and click Next.
Click Active and select the item(s).
4. Click Next and pay for the bill.
Pay for Office Users
Select the installer.
Select the Office project type and the specific office. Then, click Next.
Click Active and select the item(s).
Click Next and pay for the bill.
Renew Service
Pay for Community Users and Property Managers
Select the installer.
Select the Community project type and click Next.
Click Renew.
a. Select the communities and the service type you want to renew. Then search for the service that is expired or is expiring by the expiration date.
b. Select the renewal period with a maximum of 5 years.
Click Next to pay for the bill.
Pay for Single-tenant Users
Select the installer.
Select Villa project type and click Next.
Click Renew.
Select the item and the renewal period with a maximum of 60 months.
Click Next to pay for the bill.
Pay for Office Users
Select the installer.
Select the Office project type and the specific office. Then, click Next.
Click Renew.
Select the item and the renewal period with a maximum of 60 months.
Click Next to pay for the bill.
Transaction History
The Payments module allows you to search, check, and delete the transaction history following the user account activation and renewal. You can also download the invoice.
Note
Your distributor should enable the payment feature before you can see the module.
Check the transactions by the Created Time, Type, Status, Installer, and Order Number.
You can delete or cancel the order by clicking .
Click Pay to pay for the order if the order is not paid yet.
Parameter Description:
No. | Column Name | Description |
1 | Order Number | Displays the order numbers. |
2 | Type | Four types:
|
3 | Installer | Displays the installer name. |
4 | Project | Displays the community name and office name, while the single tenant project is displayed as “-”. |
5 | Counts | Displays the number of transactions. |
6 | Total Price | Displays the total price of the transaction. |
7 | Status | Seven types of status:
|
8 | Created Time | Displays when the order is created. |
9 | Action | Click to check the order details, or click to remove the order from the list. In the coupon details, only orders that are renewed daily will display the Next Expiration Date. |
Customer Service
You can leave your contact for the installers and end users in the Setting module so that they can contact you using the contact information.
You can enable Receive Feedback and installers' and end users' feedback will be sent to the email address that you fill in.
Contact Us
For more information about the product, please visit us at www.akuvox.com or feel free to contact us by
Sales email: sales@akuvox.com
Technical support email: support@akuvox.com
Telephone: +86-592-2133061 ext.7694/8162
We highly appreciate your feedback about our products.
