Lift Control

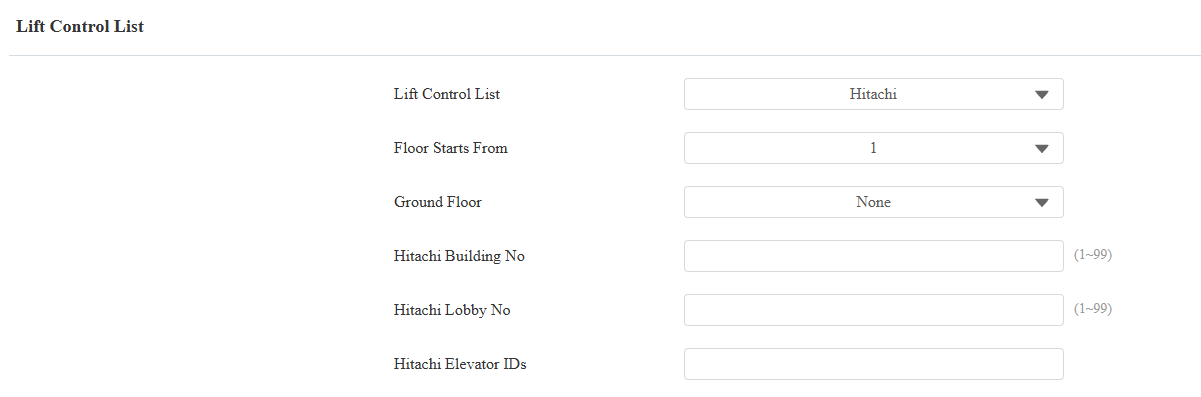

To set up the lift control, navigate to the Device > Lift Control interface.

• Lift Control List: Select None to disable the function, and select Akuvox to integrate the door phone with the Akuvox controller.

• Server 1 IP(Unlock): The IP address of the Akuvox lift control server. It supports up to 10 server addresses separated by ";".

• Server 2 IP(Execute): The IP address of the server that triggers lift control.

• Port: The server port of the lift controller server.

• User Name: The username of the lift controller for the authentication.

• Password: The password of the lift controller for the authentication.

• Floor NO. Parameter: Enter the floor number parameter provided by Akuvox. The default parameter string is “$floor”. You can define your parameter string if needed.

• URL To Trigger Specific Floor: Enter the Akuvox lift control URL for triggering a specific floor. The URL is /cdor.cgi?open=0&door= $ floor, but the string “$floor” at the end must be identical to the parameter string you defined.

• URL To Trigger All Floors: Enter the Akuvox URL for triggering all floors.

• URL To Close All Floors: Enter the Akuvox URL used for closing all floors, meaning all the buttons that are triggered for the corresponding floors will become invalid.

• Floor Starts From: Set the floor from which the floor count starts. for example, if you select -3, then the 3rd floor in the basement will be considered as the first floor matched with relay#1 (first floor).

• Device Location: Select the floor where the device is installed.
