NOTE:
This template setting is only suitable for versions with database versions of 2.0 or above, and DCA versions of 2.0.0.1 or above.
Fig.5.5 “Emergency Template setting” Interface
Parameter “Number of templates”
This parameter defines the number of parameter setting templates available for self-contained battery lights, with a maximum of 8 templates.
5.5.1 Parameter Window “Template X(X=1~8)”
The parameter setting interface “Template X” (see Figure 5.5.1) is used to configure the control behaviors of emergency lighting. Up to 8 parameter setting templates are available.

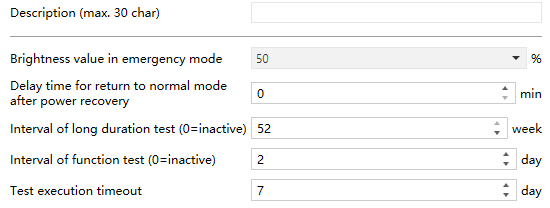

Fig.5.5.1 ”Template X(X=1~8)“ Interface
Parameter “Description (max.30 char)”
This parameter is used to input the parameter setting templates name (up to 30 characters).
Parameter “Brightness value in emergency mode”
This parameter defines the brightness value in emergency mode when power failure. This value also used for function test and duration test.
Options:
1%
2%
...
100%
The setting value is stored in the emergency lighting converter, so it is still available even if it is not connected to the gateway.
Parameter “Delay time for return to normal mode after power recovery”
This parameter sets the delay time for return to normal mode after power recovery.
Options: 0...127 min, 0 is no delay
Parameter “Interval of long duration test (0=inactive)”
This parameter sets interval for the converter to execute duration test automatically, which is used for test the battery capacity of the emergency lighting.
Options: 0...52 week, 0 is not execute duration test
Parameter “Interval of function test (0=inactive)”
This parameter sets interval for the converter to execute function test automatically. During the function test, the ECG usually turns on the light for a few seconds to test whether it can enter the emergency status normally.
Options: 0...30 day, 0 is not execute function test
Parameter “Test execution timeout”
This parameter sets the timeout period for the converter to execute test, When the converter receives the test request, the test must be run within this time period, otherwise a timeout will occur. After it is timeout, this instruction will no longer be executed.
Options: 0...255 day
In the case of low battery, the converter may not be able to execute the requested test (function test, duration test) of emergency lighting immediately, and the converter will try to execute the test at a later time (the time set by this parameter). If set to 0, the timeout will occur after 15 minutes.
The status of the test of emergency lighting can be sent or queried via the object.
