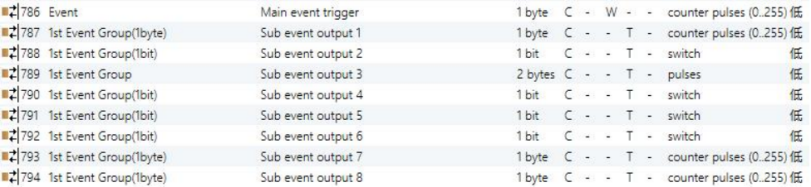

Figure 6.8 Communication Objects of "Event Group"
(X=1...8)
No. | Function | Name of Communication Object | Type | Flag | DPT | |
124 | Main event trigger | Event | 1byte | C,W | 17.001 _DPT_scene number | |
This communication object triggers each output channel in the event group to send a specific value to the bus by calling the scene number. Telegram values: 0–64 | ||||||
125 | Sub event output X | 1st /.../8th Event Group | 1bit 1byte 2byte | C,T | 1.001 _DPT_Switch 5.010 _DPT_counter pulses 7.001 _DPT_pulses | |
When a scene is called, this communication object sends the corresponding output value of the scene to the bus. If the parameter value of the output is set to 0, the telegram will not be sent. | ||||||
Table 6.8 Communication Objects of “Event Group" Function
