Screen Display

Updated
  • Updated on Jun 16, 2025
Prev Next

You can set up the device's screen display features such as screensaver to give users a better visual and operational experience.

Theme Settings

X912 door phones offer you five types of screen display modes for different applications.

To set it up, navigate to Setting > Key/Display > Theme interface.

  • Theme:

    • Default(Buttons): Display Call, PIN, and Reception buttons on the home screen.

    • Directory: Display usernames.

    • Speed Dial: Display the contact for making the speed dial call.

    • Customized Text: Display the customized text.

    • Gate Mode: This mode requires using the SmartPlus Cloud service. It will display buildings and apartments in the Cloud.

Default (Buttons) Theme

You can select the functional tabs to be displayed and modify their names.

To set it up, scroll to Key on Homepage of the Building Theme section on the Setting > Key/Display interface.

  • Type: Select the desired functional tab to be displayed in the desired area.

  • Name: Name the tab. Its name will not change its attribute.

  • Number: Only available for the Speed Dial tab. Set the number to be called through speed dial.

Speed Dial Setting in Default Theme

In the Default theme, you can set up the speed dial action on the Setting > Key/Display > Speed Dial Setting interface.

  • Account: Select the account to make the call. It applies to the registered account. If both accounts are registered, Account1 is used when Default is selected.

  • Open Relay: Select the relay to be triggered along with the call.

  • Action to Execute: Set the action to be triggered with the call. When triggered, the HTTP message can be captured and displayed in the corresponding packets. To utilize this feature, enable the HTTP server and enter the message content in the designated box below.

    • HTTP URL: Enter the HTTP URL to perform certain actions. The format of sending the message is http://HTTP server’s IP/Message content.

Speed Dial Theme

You can display up to five speed dial numbers in the Speed Dial theme.

Scroll to Speed Dial Setting section on the Setting > Key/Display interface.

  • Name: The contact’s name.

  • Number: The target SIP/IP number.

Customized Text Theme

You can customize the text to be displayed on the device home screen, such as community or company names.

To set it up, scroll to the Customized Text section on the Setting > Key/Display interface.

  • Text: The maximum text length is 63 characters.

Gate Mode

You can set up functional tabs to be displayed in Key on Homepage of the Gate Mode Theme section.

  • Type: Select the desired functional tab to be displayed in the desired area.

  • Name: Name the tab. Its name will not change its attribute.

  • Number: Only available for the Speed Dial tab. Set the number to be called through speed dial.

Directory Setting

In Gate Mode, you can set up the search functions by which users can conveniently find desired buildings and rooms.

Set it up in the Directory Setting section.

  • Building Search Enable: When enabled, a search box will be displayed on the home screen. Users can enter the building name to find the target building.

  • Room List Display Enable:

    • When enabled, all rooms in a building will be displayed after users select the building, and users can search for rooms.

    • When disabled, rooms will not be displayed, and users can only search for the room by entering the complete room number.

  • Text Prompt For Building Search: Shown on the building display screen.

  • Text Prompt For Room Search: Shown on the room display screen.

Relay Key Settings

This feature applies to the Default(Buttons) theme and Gate Mode. When the Relay tab is selected to be displayed, you can set up which relay and when it can be unlocked.

Scroll to the Relay Key section on the Setting > Key/Display interface.

  • Key ID: Specify which tab is set to be Relay.

  • Open Relay: The relay to be triggered.

  • Schedule: The relay can only be triggered within the schedule.

  • Tips When Open Door Failed: The text prompt appears when the door opening fails.

Dial Screen Prompt Display

This feature does NOT work for Gate Mode.

You can customize the prompt to be displayed on the dial screen on the Setting > Key/Display > Prompt Of The Call Page interface.

  • Text Prompt: The maximum text length is 128 characters.

Screensaver Configuration

You can set the screen saver duration as well as the timing for the screen to be turned off for both screen protection and power reduction.

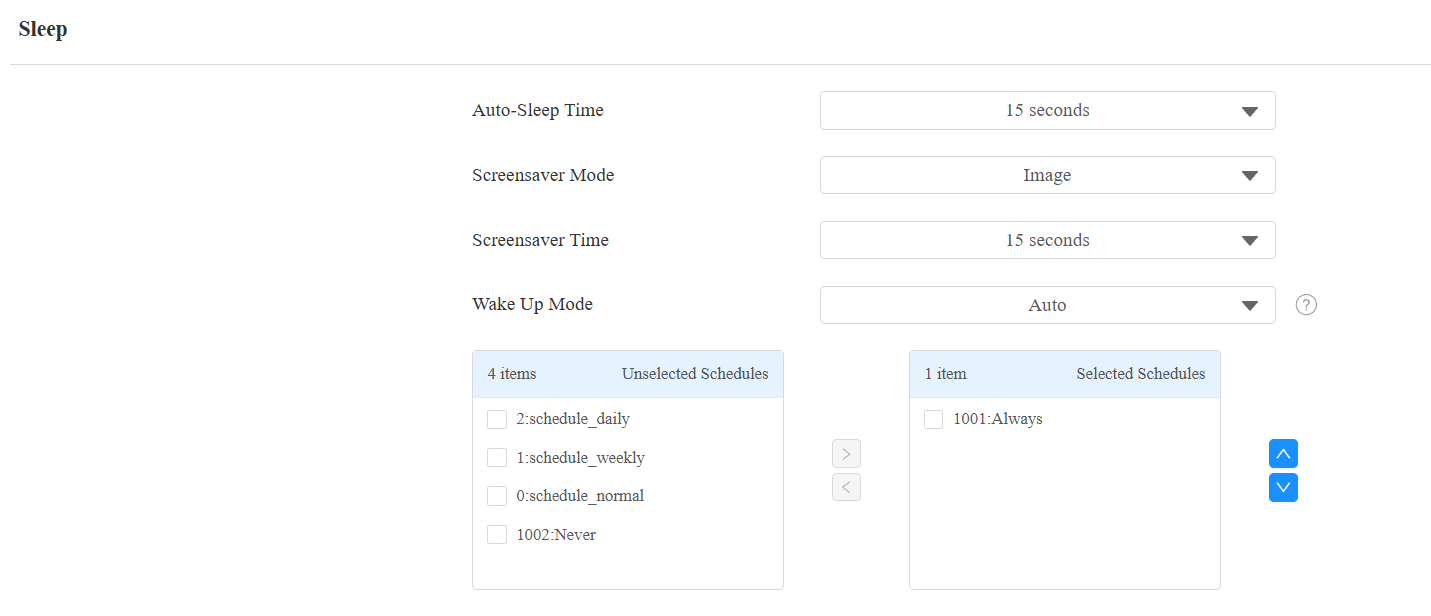

To set it up, go to Device > LCD > Sleep.

  • Auto-Sleep Time: The interval between the screensaver and the screen off. For example, if it is set to 15 seconds, the device will go into screen saver mode when the device detects no operation or no approaching object for 15 consecutive seconds. When screen saver mode is disabled, the device screen will be turned off directly in 15 seconds. Auto-sleep time ranges from 5 seconds to 30 minutes.

  • Screensaver Mode:

    • Image: Display the personalized pictures uploaded to the device.

    • Disabled: Disable the screen saver function.

  • Screensaver Time: The screensaver duration ranges from 5 seconds to 30 minutes.

  • Wake Up mode:

    • Auto: You can set the schedule when the screen will be automatically woken up by detecting an approaching object or operation.

    • Manual: Wake up the screen by touching it.

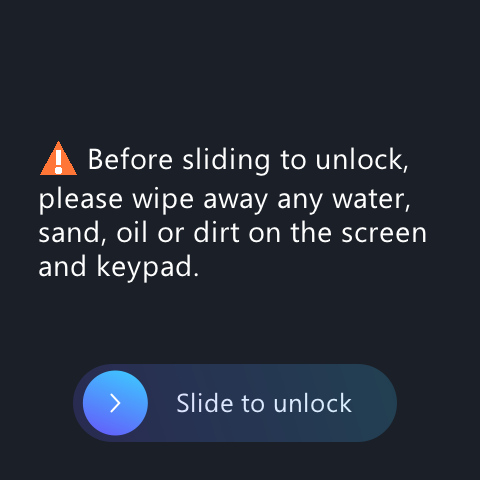

    • Activated by Motion Detection: This option is designed to prevent unintended activation. The screen needs to be unlocked by sliding the unlock button on the screen or by detecting a face in front of the camera. When enabled, you can set the schedule when the feature is effective. Beyond the range of the schedule, the device adopts the Auto mode.

Upload Screensaver

You can upload screen-saver images individually or in batches to the device via the web interface, enhancing visual experience or serving publicity purposes.

To set it up, go to the Device > LCD > Upload Screensaver interface. Click Import to upload the file and click Delete to remove the existing one.

  • Transition Time: The display time(1-120 seconds) of each screensaver picture. The default is 5 seconds.

Note

  • Max Size: 1M, Format: .jpg, Recommended resolution: 480×480.

  • The previous picture with a specific ID order will be overwritten when picture with the same ID is uploaded.

Upload Background Picture

You can upload the background picture that works for all pages.

To set it up, go to the Device > LCD > Upload Background interface. Click Import to select the file from your local drive and click Reset to remove the file.

Note

Max Size: 2M; Format: .jpg/png; Recommended resolution: 480*480.

Open Door Text Prompt Display

You can enable the open door text prompt for both door-opening success and failure.

To set it up, navigate to the Access Control > Relay > Door Setting General interface.

Screen Displayed when Pressing Keypad

You can decide which screen to display, PIN entering or Dialing screens, by selecting the keypad mode.

To set it up, go to the Device > Keypad interface.

  • PIN Entry: Enter the PIN entering screen when pressing numbers on the keypad.

  • Dial or PIN Entry: Enter the dialing screen when pressing numbers on the keypad.
