Understand akubela Firmware Versions

This guide explains how to identify and interpret akubela firmware versions for panels running Solution V4.0.0 and later, as well as BelaHome app versions.

Part 1: Understanding Software Versions

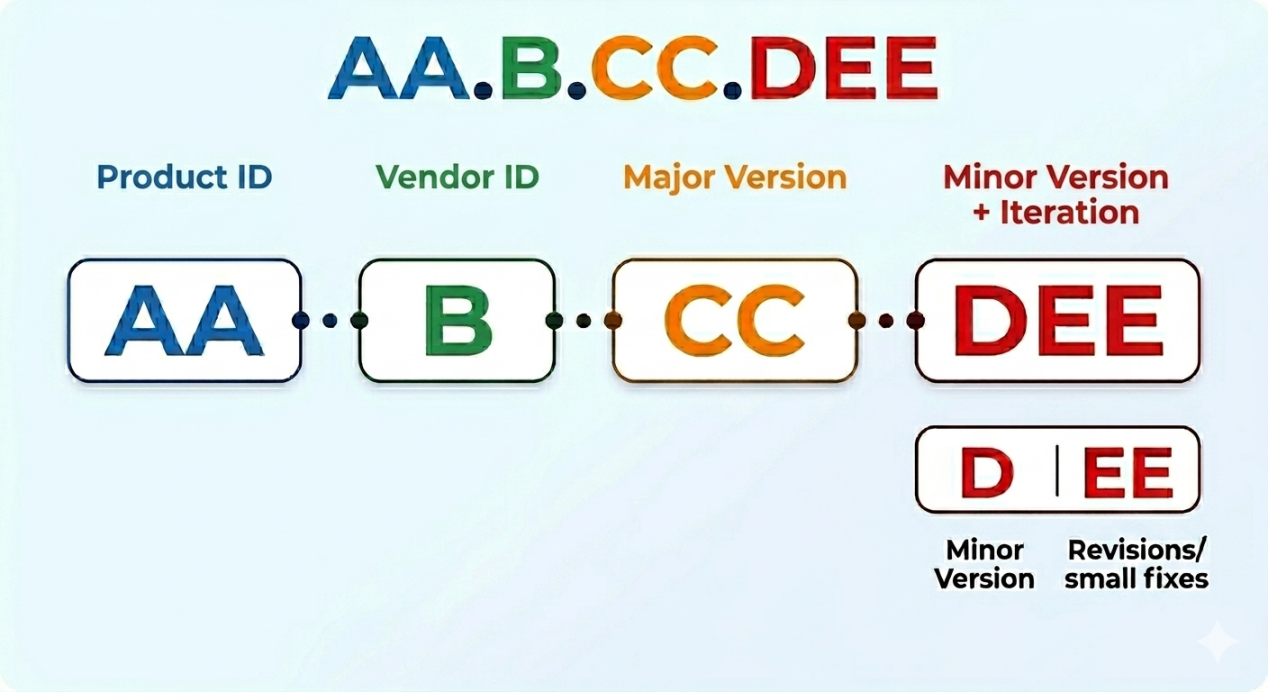

Firmware Version Format

akubela panels typically use the following formats:

NOTE:

• The number of digits in each segment may vary.

• The minor version number may be omitted.

Example 1:

Firmware version: 71.1.40.115

Corresponding solution version: V4.0.1

• 71 → Product ID for PG71 (HyPanel Pro)

• 1 → Vendor ID for akubela

• 40 → Major Version V4.0

• 115 → Minor version 1, iteration 15

Example 2:

Firmware version: 51.1.40.42

Corresponding solution version: V4.0.0

• 51 → Product ID for PS51 (HyPanel)

• 1 → Vendor ID for akubela

• 40 → Major Version V4.0

• 43 → Iteration 43 (no minor version)

Product ID Reference

Vendor ID Reference

Solution Version Mapping

Solution versions use the following format: [x].[x].[y]

• The first two digits correspond to the Major Version.

• The last digit corresponds to the Minor Version portion of the last firmware segment.

NOTE:

This mapping rule applies exclusively to solution versions V4.0.0 and later. For cross-reference maps of older firmware or complex builds, contact akubela technical support.

Example mapping:

Part 2: Understanding BelaHome App Versions

Mobile apps for both iOS and Google Play use the following format:

[Major Version].[Minor Version].[Iteration]

Examples:

• Version 2.1.3 → Solution 2.1, iteration 3

• Version 3.0.57 → Solution 3.0, iteration 57

NOTE:

App versions do not contain an embedded Vendor ID. Original Equipment Manufacturer (OEM) variants are identified strictly by the app name and package name.
