The Proximity sensor parameter page (Figure 5.4.1) is used to configure proximity detection functions.

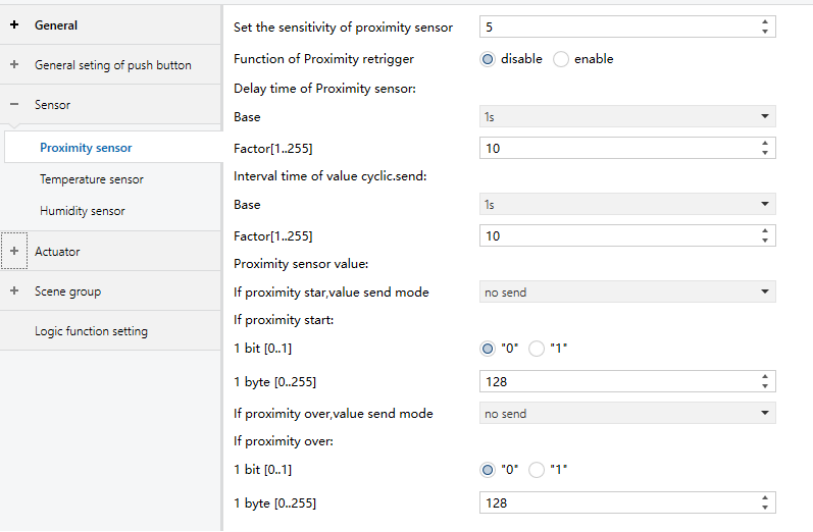

Figure 5.4.1 “Proximity sensor" Interface
Set the sensitivity of proximity sensor
Sets the sensitivity level of the proximity sensor.
Lower values indicate higher sensitivity, which may increase the risk of false triggering.
Options: 0…15
Function of Proximity retrigger
Defines whether retriggering is enabled.
When enabled, a new detection during the active period restarts the timing.
Options:
disable
Enable
Delay time of Proximity sensor, Base * Factor [1…255]
Defines the delay time after motion is detected.
Delay time = Base × Factor.
Base options:
100ms
1s
10s
1min
1h
Factor options:
1…255
Interval time of value cyclic.send, Base * Factor [1…255]
Defines the interval for cyclic transmission of values (1bit or 1byte) to the bus.
Cycle time = Base × Factor.
Base options:
100ms
1s
10s
1min
1h
Factor options:
1…255
If proximity start/over, value send mode
Defines how values are sent when motion is detected and when motion ends.
Options:
No send
Send one time
Send cyclically: The value is sent cyclically according to the interval defined above. The transmitted value is configured using the parameters below.
1bit [0…1]/1byte [0…255]
Defines the values sent for 1bit and 1byte proximity objects.
