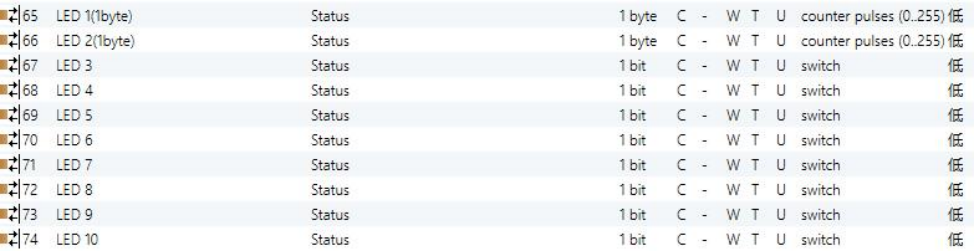

Figure 6.3 Communication Objects of LED indicator
NO. | Function | Name of Communication Object | Type | Flag | DPT |
65……74 | Status | LED X | 1bit 1byte | C,W,T,U | 1.001 DPT Switch 5.010 DPT counter pulses |
This communication object is used to receive 1bit/1byte telegrams. LED indicates status according to the telegram value and settings. | |||||
Table 6.3 Communication Objects of LED indicator
