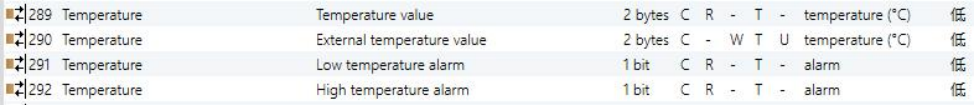

Figure 6.4 Temperature Sensor Communication Objects
No. | Function | Name of Communication Object | Type | Flag | DPT |
289 | Temperature value | Temperature | 2bytes | C,R,T | 9.001 DPT Temperature |
This communication object is used to send the device temperature sensor value to the bus. The value can come from a local sensor or from another sensor on the bus. | |||||
290 | Extern temperature value | Temperature | 2bytes | C,W,T,U | 9.001 _DPT_Temperature |
This communication object is used to receive values from an external temperature sensor via the bus. | |||||
291 | Low temperature alarm | Temperature | 1bit | C,R,T | 1.005 DPT Alarm |
This communication object is used to output a low-temperature alarm message to the bus. | |||||
292 | Low temperature alarm | Temperature | 1bit | C,R,T | 1.005 DPT Alarm |
This communication object is used to output a high-temperature alarm message to the bus. | |||||
Table 6.4 Temperature Sensor Communication Objects
