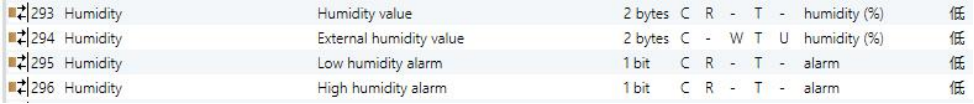

6.5 Communication Objects of Humidity Sensor

No.

Function

Name of Communication Object

Type

Flag

DPT

293

Humidity value

Humidity

2bytes

C,R,T

9.007 _DPT_Humidity

This communication objects sends humidity sensor readings from the device to the bus, either from local or other bus sensors.

294

Extern Humidity value

Humidity

2bytes

C,W,T,U

9.007 _DPT_Humidity

This communication object receives external humidity sensor readings from the bus.

295

Low humidity alarm

Humidity

1bit

C,R,T

1.005 _DPT_Alarm

This communication objects send low humidity alarm telegrams to the bus.

296

Low humidity alarm

Humidity

1bit

C,R,T

1.005 _DPT_Alarm

This communication objects send high humidity alarm telegrams to the bus.
