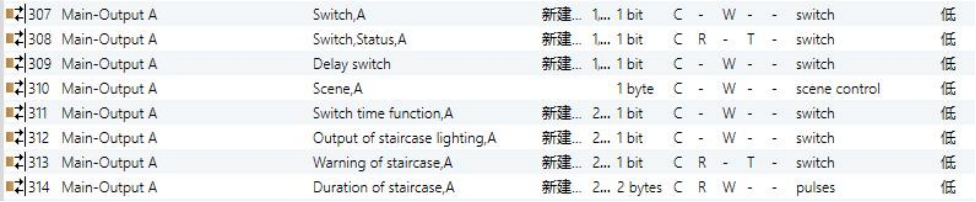

6.6 Communication Objects of "Switch Actuator"

No.

Function

Name of Communication Object

Type

Flag

DPT

307

Switch X

Main -Output X

1bit

C,W

1.001 DPT Switch

This communication object is used to trigger the switch actuator:

Telegram:

• “1” triggers an On action.

• “0” triggers an Off action.

308

Switch,Status,X

Main -Output X

1bit

C,R,T

1.001 _DPT_Switch

This communication object reports relay contact status.

309

Delay switch

Main -Output X

1bit

C,W

1.001 DPT Switch

This communication object triggers delayed switching.

310

Scene,X

Main -Output X

1byte

C,W

18.001 DPT Scene  Control

311

Switch time function,X

Main -Output X

1bit

C,W

1.001 DPT Switch

This communication object enables/disables switch-time-related functions (e.g., staircase lighting).

312

Output of staircase lighting,X

Main -Output X

1bit

C,W

1.001 DPT Switch

This communication object triggers staircase lighting ON/OFF.

313

Warning of staicase,X

Main -Output X

1bit

C,R,T

1.001  DPT Switch

This communication object sends the telegram of staircase lighting warnings to the bus.

314

Duration of staircase,X

Main -Output X

2bytes

C,R,W

7.001  DPT pulses

This communication object sets staircase lighting duration (max 60059 seconds).
