Screen Display

You can set up the device's screen display features such as screensaver to give users a better visual and operational experience.

Home Screen Display

The device supports Villa, Building, Speed Dial, QR code, and Two Column Speed Dial themes. You can apply the desired theme to different scenarios.

Select the theme on the Setting > Key/Display > Theme interface.

Villa: Display the Directory, PIN, and Call tabs vertically on the home screen.
Building: Display PIN, Call, Directory, and Reception tabs and the facial recognition box on the home screen.
Speed Dial: Display the contact for making a speed dial call.
QR Code: Display the QR code scanning box.

Building Theme	Villa Theme

Speed Dial Theme	QR Code Theme

Two Column Speed Dial

Villa Theme

You can select the functional tabs to be displayed and modify their names.

Set it up on the View Control of The Villa Theme section.

Default Page: Select the homepage display type.
- Home Page: The default display with three vertical round icons, Directory, PIN, and Call.
- Call: Display the Dial screen as the homepage.
- Tenants: Display the Contact screen as the homepage.
- PIN: Display the PIN screen as the homepage.

Note
If you switch from Building mode to Villa mode and your previous home screen was set to Home Page, the three round icons for Tenants, PIN, and Call will be displayed. However, if your previous display type was Call, Tenants, or PIN, only the corresponding highlighted icons will appear at the top of the home screen instead of the three round icons for the Homepage.

Key: Select the key to be displayed from Tenants, PIN, and Call.
Button Name: Name the key. The name will not change the attribute of the key.
Value: Display the key or not.

Speed Dial in Villa Theme

Speed dial is a feature that enables the creation of tabs or organized tab combinations to be displayed on the device's dial screen. By pressing these specific tabs, you can make swift calls without the need to enter any dial numbers.

Set it up on the Setting > Key/Display > Display Mode of Call Interface (Speed Dial) interface.

Options	Descriptions
Standard	Display time and keypad.
Auto	Display all speed dial buttons set by the users.
1 Key	Display a single contract without the keypad.
1 Key + Keypad	Display a single dial button with the keypad.
2 Keys+ Keypad	Display up to 2 dial buttons with the keypad.
4 Keys+ Keypad	Display up to 4 dial buttons with the keypad.
8 Keys	Display up to 8 dial buttons without the keypad.
16 Keys	Display up to 16 dial buttons without the keypad.
64 Keys	Display up to 64 dial buttons without the keypad.

Building Theme

You can select the functional tabs to be displayed and modify their names.

Set it up on the Key on Homepage of the Building Theme section.

Button Name: Name the key. The name will not change the attribute of the key.
Type: Select the key type.
Value: It is available for those features that need to be set up with numbers, such as Speed Dial.

Speed Dial in Building Theme

The Speed Dial feature allows users to make speedy calls by pressing the Speed Dial tab(Reception) without entering any numbers.

To set it up, go to the Setting > Key/Display > Speed Dial Setting interface.

Speed Dial(Cloud): Display the speed dial number(s) updated from the SmartPlus Cloud that cannot be changed.
Group:
- Disabled:
  - When the device is connected to the Cloud, Disabled means the call will be made to other devices and the SmartPlus App, based on where it is installed.
  - When the device is deployed locally, the call will be made to the number you fill in the value field of the Speed Dial(Reception) key.
- [Cloud Group Name]: The call will be made to all contacts in the group. The Cloud group name is the APT name.
Dial Out Forward: When enabled, all calls will be made to the same target number when pressing the Reception button.
- Mode: When Dial Out Forward is enabled, configure the schedule when the feature is working. You can also select Auto Disable and decide after how many hours the feature will be turned off.

Speed Dial Action In Building Theme

You can set up the reception tab in the Building or Multi-factor Authentication theme, with which users can make a call and open the door.

Set it up on the Setting > Key/Display > Speed Dial Action In Building Theme interface.

Account: Select the account to make the call. It applies to the registered account. If both accounts are registered, Account1 is used when Default is selected.
Open Relay: Select the relay to be triggered along with the call.
Action to Execute: Set the action to be triggered with the call. When triggered, the HTTP message can be captured and displayed in the corresponding packets. To utilize this feature, enable the HTTP server and enter the message content in the designated box below.
- HTTP URL: Enter the HTTP URL to perform certain actions. The format of sending the message is http://HTTP server’s IP/Message content.

Language Setting Of The Building Theme

You can set up the language display in the Building or Multi-factor Authentication theme on the Setting > Key/Display > Language Setting of The Building/Multi-factor Authentication Theme interface.

Show: When disabled, the language options will be hidden on the home screen.
Language 1-4: You can select four languages to be displayed on the home screen.

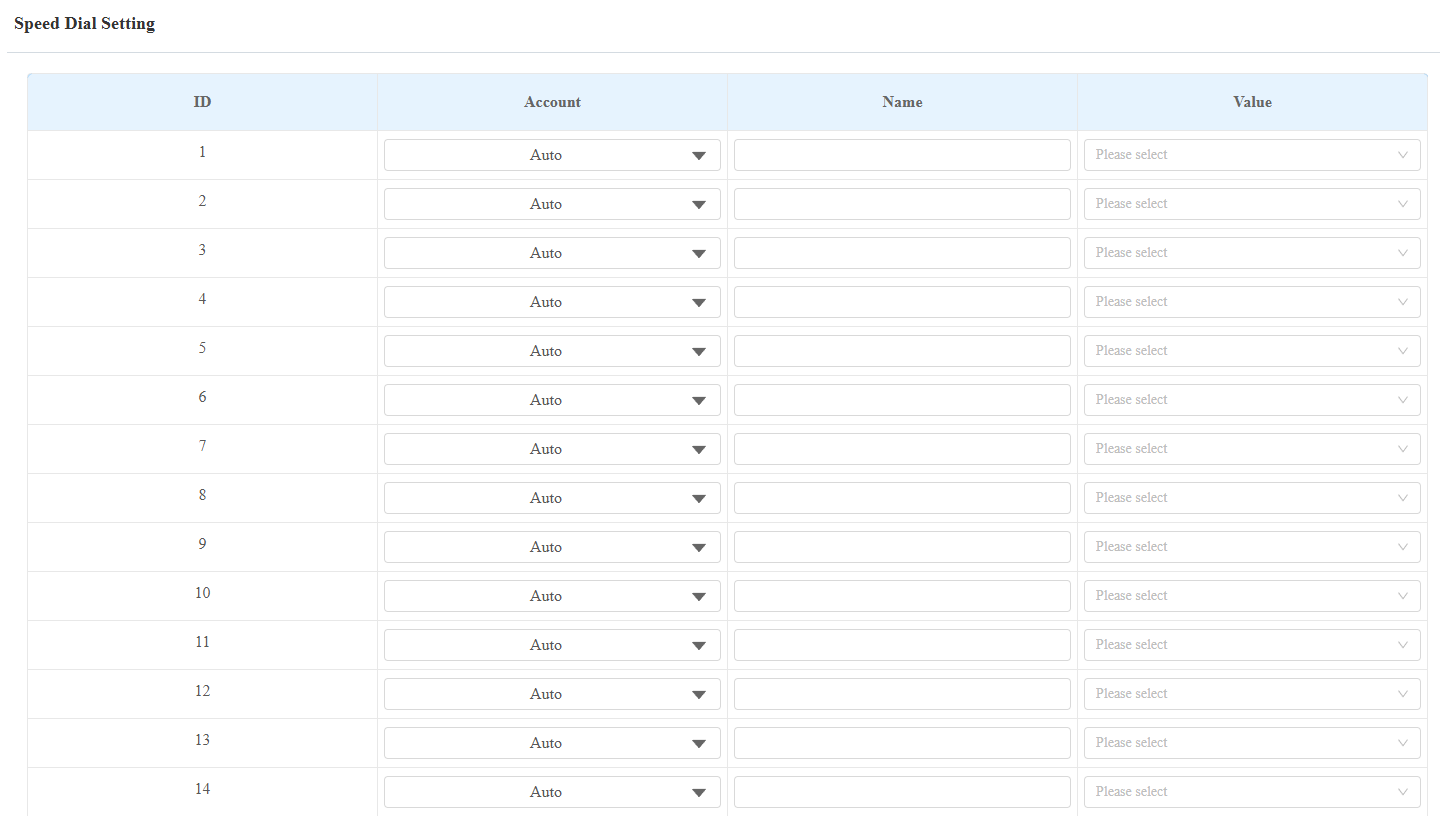

Speed Dial Theme

You can set up 16 speed dial numbers at a maximum on the Setting > Key/Display interface.

Account: Choose the account to make the speed dial call if it is a SIP call.
Name: Name the contact.
Number: Enter the IP/SIP number.

QR Code Theme

You can define the QR code scanning interval on the Setting > Key/Display interface.

Two Column Speed Dial Theme

This theme allows you to display speed dial numbers in two columns, making it easy for visitors to call residents.

Set it up on the Setting > Key/Display interface.

Title of the Two Column Speed Dial Theme: Customize the title(63 characters at maximum) shown at the top of the screen, which can be the community name or building number. Entering '|' indicates line breaks.

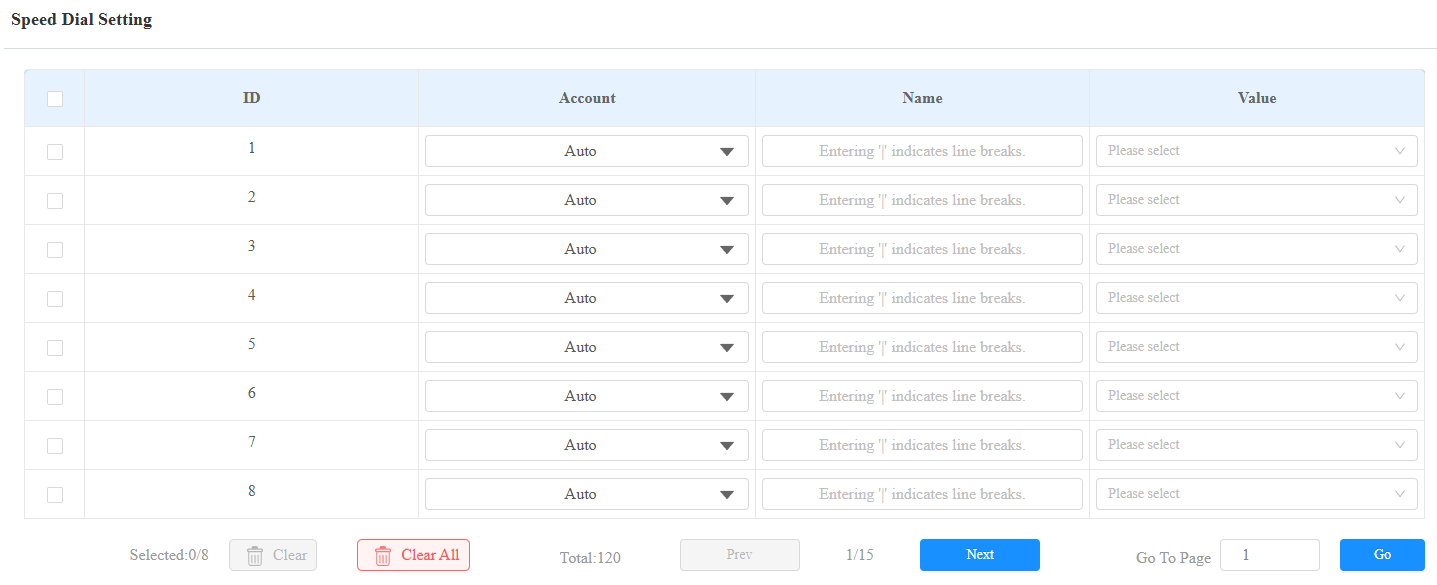

Speed Dial Setting

You can add up to 120 speed dial numbers, with 8 numbers displayed per page.

Set up numbers on the Setting > Key/Display interface. Click Prev/Next to turn the page.

Account: The account to make the call.
Name: The contact name. Entering '|' indicates line breaks.
Number: The contact’s IP/SIP number.

Key Display on the Other Access Methods Page

You can choose key(s) to display on the Other Access Methods page. This page simulates the Building theme page for other functions, such as PIN entry and door access.

Set it up on the Setting > Key/Display interface.

Button Name: Name the key. The name will not change the attribute of the key.
Type: Select the key type.
Value: Available for the Speed Dial type that needs to set up numbers.

Return Timeout Setting

You can specify the inactivity duration after which the device will automatically return to the Two Column Speed Dial page from the Other Access Methods page.

Set it up on the Setting > Key/Display interface.

Enabled: Disabled by default. Check to activate the feature.
Timeout: Set the time(5~300 seconds).

Dial Key Order

The device provides normal and scrambled keypad display options. Opting for the scrambled setting means that the arrangement of keys is randomized each time, enhancing security by preventing password spying.

Set it up on the Setting > Key/Display > Keypad Display Mode Of PIN Interface. The setting is available for Villa and Building themes.

Text Prompt Display

You can set up the text prompts on the Call, PIN, and Directory screens. The setting is available for the Building theme.

Set them up on the Setting > Key/Display > Text Prompt screen. The text prompt is 63 characters maximum in length.

Screensaver Settings

You can set the screen saver duration as well as the timing for the screen to be turned off for both screen protection and power reduction.

On the Web

Set up screensaver on the web Device > LCD interface.

Auto-Sleep Time: The no-operation time for the device screen to turn dark or show the screensaver.
Screensaver Mode:
- Disabled: The screen will directly turn dark after the auto-sleep time.
- Image: The picture uploaded will be shown as the screensaver.
Screensaver Time: Set the screensaver duration from 5 seconds up to 30 minutes, or Forever. The screensaver starts when the device detects no operation or when no one is approaching.
Wake Up Mode:
- Auto: The screen can be awakened when someone approaches without it being touched. When selected, you can select a schedule to limit the setting's effective time.
- Manual: Touch and wake up the screen.

Upload Screensaver

You can upload screen-saver pictures to the device for publicity purposes or a greater visual experience.

Navigate to the web Device > LCD interface.

Interval: The time interval switching between two pictures.

Note
The file should be in .jpg format with a 2M max size.
The recommended resolution is 800*1280.

Open Door Text Prompt

You can enable the open door text prompt for both door-opening success and failure. And you can also make the door phone display the user information when users use credentials such as RF cards for access.

Set it up on the web Access Control > Relay > Open Door Text Prompt interface.

Open Door Outside Succeeded Text Prompt: Display a text prompt after the door is opened by the device-supported access methods, except for the exit button.
Open Door Inside Succeeded Text Prompt: Display a text prompt after the door is opened by pressing an exit button(the input is triggered).
Open Door Failed Text Prompt: Display a text prompt after opening the door fails.
Display User Info: Display the user information after facial recognition or card swiping. For example, if facial recognition succeeds, the text prompt “Access Granted” with the user ID and name will pop up on the device screen. If it fails, the text prompt “Access Denied” with “Stranger, Name: Unknown” will be displayed.
